IOM ggplot2 color scales

Source: R/iom_scale.R
iom_scale.Rd

Color scales help differentiate between data points, making it easier to identify patterns, trends, and outliers.

Usage

scale_color_iom_c(
  ...,
  palette = 1,
  direction = 1,
  na.value = "#E9E9E9",
  guide = "colourbar"
)

scale_color_iom_d(
  ...,
  palette = 1,
  direction = 1,
  nmax = NULL,
  order = NULL,
  na.value = "#E9E9E9"
)

scale_color_iom_b(
  ...,
  palette = 1,
  direction = 1,
  nmax = NULL,
  order = NULL,
  na.value = "#E9E9E9",
  guide = "coloursteps"
)

scale_colour_iom_c(
  ...,
  palette = 1,
  direction = 1,
  na.value = "#E9E9E9",
  guide = "colourbar"
)

scale_colour_iom_d(
  ...,
  palette = 1,
  direction = 1,
  nmax = NULL,
  order = NULL,
  na.value = "#E9E9E9"
)

scale_colour_iom_b(
  ...,
  palette = 1,
  direction = 1,
  nmax = NULL,
  order = NULL,
  na.value = "#E9E9E9",
  guide = "coloursteps"
)

scale_fill_iom_c(
  ...,
  palette = 1,
  direction = 1,
  na.value = "#E9E9E9",
  guide = "colourbar"
)

scale_fill_iom_d(
  ...,
  palette = 1,
  direction = 1,
  nmax = NULL,
  order = NULL,
  na.value = "#E9E9E9"
)

scale_fill_iom_b(
  ...,
  palette = 1,
  direction = 1,
  nmax = NULL,
  order = NULL,
  na.value = "#E9E9E9",
  guide = "coloursteps"
)

Arguments

...

Other arguments passed on to discrete_scale() or continuous_scale() to control name, limits, breaks, labels and so forth

palette

If a string, will use that named palette. it can be any of the IOM brandied palettes:

  • 2 qualitative palettes - pal_iom and pal_iom_region

  • 5 sequential palettes - pal_blue, pal_navy, pal_green, pal_red, pal_yellow, pal_grey

  • 2 diverging palette - pal_blue_red & pal_navy_rev

If a number, will index into the list of palettes of appropriate type

direction

Sets the order of colors in the scale. If 1, the default, colors are as output by iom_pal(). If -1, the order of colors is reversed

na.value

Missing values will be replaced with this value.

guide

A function used to create a guide or its name. See guides() for more information.

nmax

Maximum number of different colors the palette should contain. If not provided, is calculated automatically from the data.

order

Numeric vector listing the order in which the colors should be used. Default is 1:nmax.

Value

A discrete, continuous or binned Scale object

Details

You will need to select the right type of color scale depending on your data

  • Discrete Color Scales:scale_..._iom_d - Use these when you have categorical data and that require a qualitative color palette.

  • Continuous Color Scales: scale_..._iom_c -Use these for numerical data that progresses from low to high and that require a sequential color palette.

  • Diverging Color Scales: scale_..._iom_b - Use these when you have data with a meaningful midpoint and that require a diverging color palette.

depending on the geometry use, either fill or color - or a combination

Examples

library(ggplot2)
library(iomthemes)

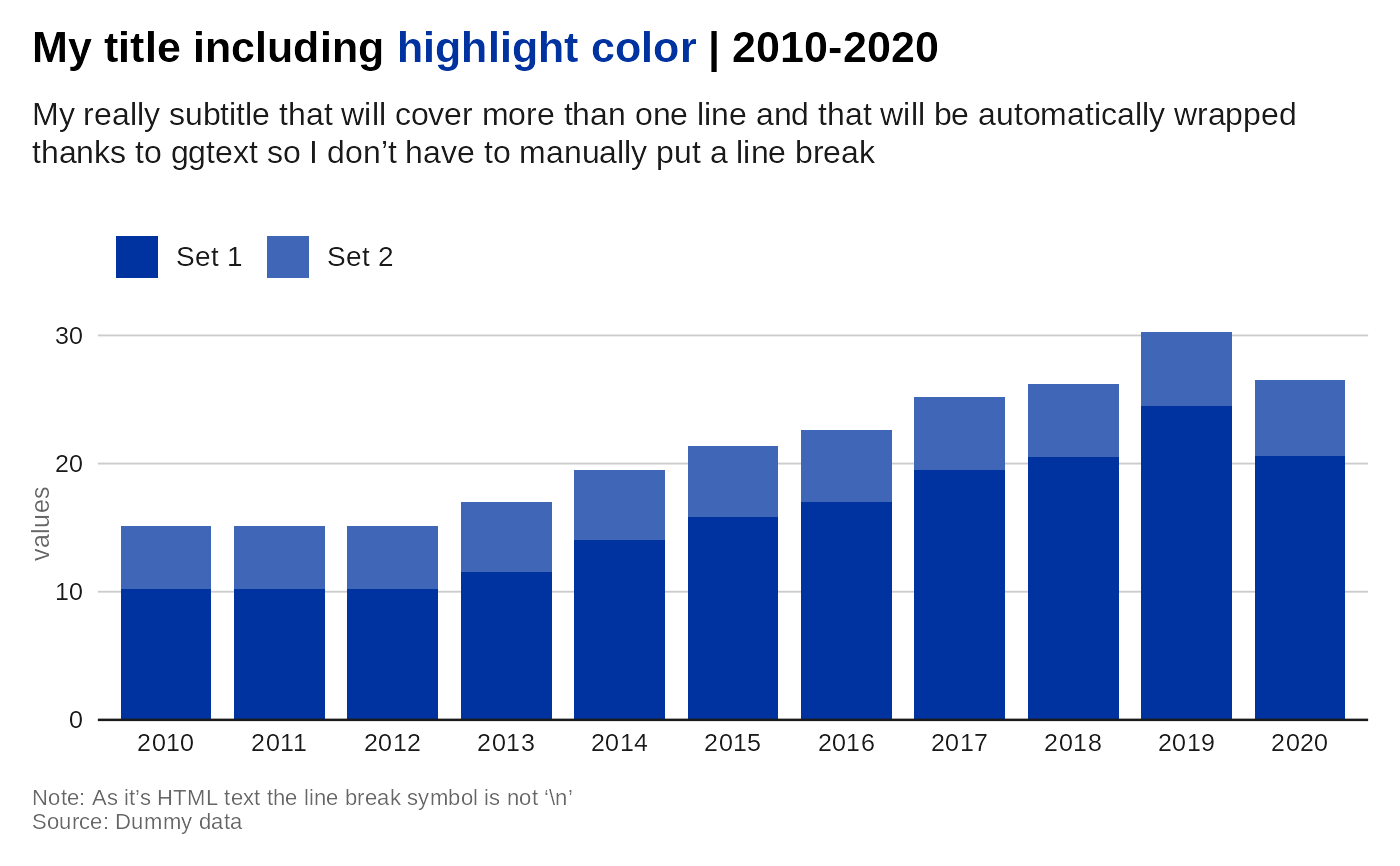

# Discrete Color Scales:scale_..._iom_d -  Use these when you have
#     categorical data  and that require a qualitative color palette.

df <- data.frame(
  date = factor(rep(2010:2020, 2)),
  val = c(
    10.2, 10.2, 10.2, 11.5, 14,
    15.8, 17, 19.5, 20.5, 24.5, 20.6,
    4.9, 4.9, 4.9, 5.5, 5.5, 5.6,
    5.6, 5.7, 5.7, 5.8, 5.9
  ),
  set = rep(c("Set 1", "Set 2"), each = 11)
)
ggplot(
  data = df,
  aes(x = date, y = val, fill = set)
) +
  geom_col(
    position = position_stack(reverse = TRUE),
    width = 0.8
  ) +
  labs(
    title = "My title including
              <span style='color:#0033A0;'>highlight color</span> | 2010-2020",
    subtitle = "My really subtitle that will cover more than one line and
              that will be automatically wrapped thanks to ggtext so I don't
              have to manually put a line break",
    y = "values",
    caption = "Note: As it's HTML text the line break symbol is
               not '\\n'<br>Source: Dummy data"
  ) +
  scale_y_continuous(
    expand = expansion(c(0, 0.01))
  ) +
  scale_fill_iom_d() +
  theme_iom(
    grid = "Y",
    axis = "X",
    axis_title = "Y"
  )
